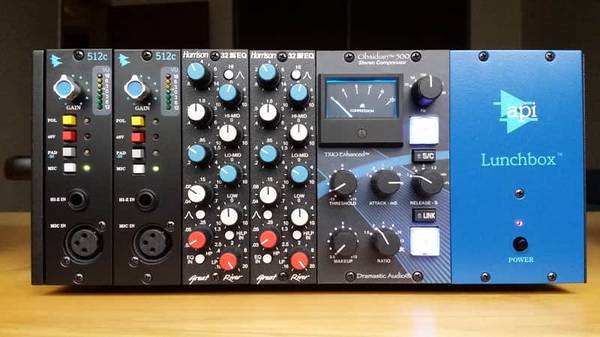

API Lunchbox (Fully Loaded) - API 512C, Harrison EQ32, Dramastic - $4,500 (Cleveland)
QR Code Link to This Post
2x API 512c Microphone Preamps
The API 512c remains faithful to the circuit designs of API's founder Saul Walker. Artfully combining those circuits with API's proprietary transformers and the incomparable 2520 op-amp, the 512c is a highly musical and rich-sounding analog mic pre, equally at home in commercial recording spaces as it is in smaller home studios. Fully featured and still hand assembled, the 512c exhibits the reliability, long life, and uniformity which are characteristic of all API products.
While it's entirely accurate to call the API 512c an excellent all-around microphone preamp, that doesn't do it justice. The API 512c is arguably the most popular 500 Series module available, offering every bit of the classic API console sound in a single-channel 500 Series format. Some describe the character as "pure." Some call it "fast." However you define it, the 512c delivers 100% API sound...versatile and timeless.
Features:
Mic Preamp with 65 dB of gain
Front and Back Panel Mic Input Access
Line/Instrument Preamp with 50 dB of gain
Front and Back Panel Line/Instrument Input
LED VU meter for monitoring output level
20 dB pad switch, applies to mic/line/instrument
48v Phantom switchable power
Traditional API fully discrete circuit design
Uses the famous API 2520 Op-Amp
Specs:
Rear Connector: Output on edge connector, MIC Input on edge connector,
can be defeated
Front Connectors: XLR MIC Input, HI-Z 1/4" Unbal Input
Gain Range: MIC: 34dB to 65dB (14dB to 45dB w/PAD). HI-Z: 14dB to
45dB (-6dB to 25dB w/PAD)
Maximum Input Levels: MIC, +8 dBu, Unbal HI-Z Input, +36 dBu
Input Impedance: MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input,
400 K Ohms (20 K Ohms with pad)
Output Impedance: Less than 75 Ohms, Transformer Balanced
Clipping Level: +30 dBu
Frequency Response: +0, -.3, 30 to 20 kHz
Noise: Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.
Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBu
Distortion: Less than .05% +4 Out, Less than .1% @ +28 Out
Power Consumption: ±12/18 Volts/DC, @40 ma.
Size: 1.5" X 5.25" X 7" Deep
Actual Weight: 1.41 lbs.
